The 1889 tower, from Eiffel's plates

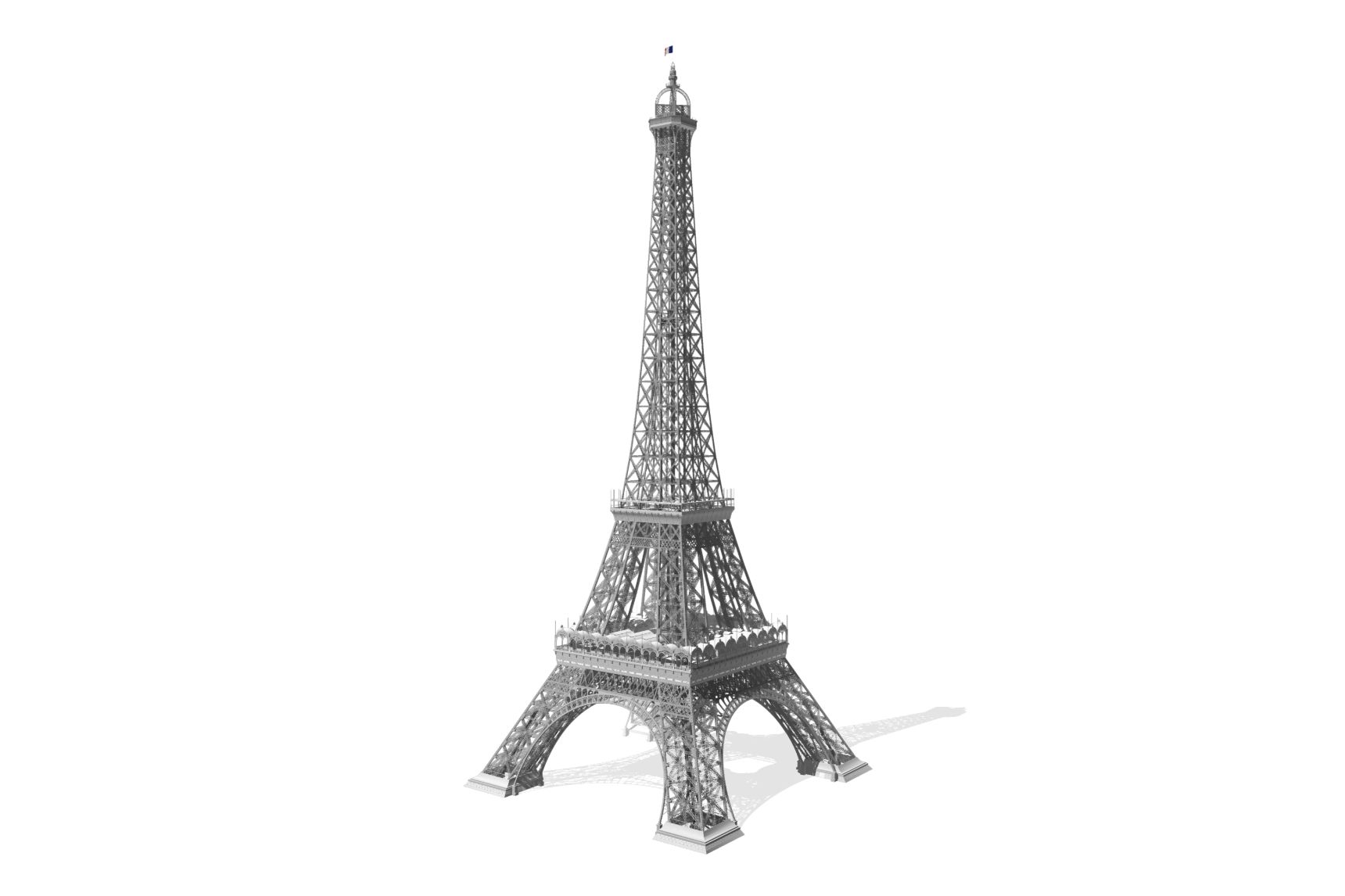

The tower's geometry divides at the panel. Above that scale the demo copies numbers: the node table of Plate XXXI, the floor levels of Plate I, the arch radii of Plates VII and XI, and the member sections printed in Plate XXXI's tables.

Below it, the demo states rules and applies them to every member the table implies. The rules say which bracing pattern a panel carries, how a web member is laced, where a strut stops short of the upright it meets, and where a rivet goes. The web members are not traced from a drawing.

Some parts are placed from figures of their own. The list grew with the model:

• the summit's diagonal girders and its rooms;
• the leg entretoises and one plan girder;
• the uprights, plate by plate from Plate XXXI's sections, and their splices;
• the arches' ironwork;
• the plinths, supports and foundations;
• the lift cabins and the stairs;
• the erection's timber pylons and scaffolds.

Each depth is a different graph, not a different view of one.

• Skeleton draws every web member as a solid bar of its outer section, and the built-up uprights as their web plates alone. The plan bracing's lattice girders are the exception: they are open chords with a Warren web at every depth.
• Laced replaces each of those solid bars with four corner angles and their lacing. In the legs and the shaft, each is also trimmed at its joints and given gusset plates. Laced also adds three more things: what stands out of the uprights' webs (the cover strips over their butts, and in panels 1–5 the fins and channels), the arches' volutes and macarons, and the plates where two bars cross.
• Rivets adds the rivets as instances.

Lacing and rivets are each set to off, streamed or full. Full cooks the depth once, for the whole tower. Streamed cooks it a cell at a time round the camera (see Detail).

Two more graphs sit beside these. ?rivets=full is the rivets depth cooked full, plus the rows along the built-up uprights as Plate IX draws them (panels 6–11's taken as in panels 1–5 [estimated]); those rows have no streamed form. ?build is the erection (see Erection).

The host page supplies materials, a light rig, a ground plane and unit assets for the instances: the rivet head, and the cabochon, gas globe, baluster and Roux chain pieces that the fittings and the chains resolve against. It generates no other geometry and repairs none.

It does act on what the graph hands it, at load or over time. It applies each rivet head's hand-drive, moves the lift cars, their machinery and their chains every frame, runs the flag as a cloth, reveals the erection day by day, and clips the tower in section (see Rendering).

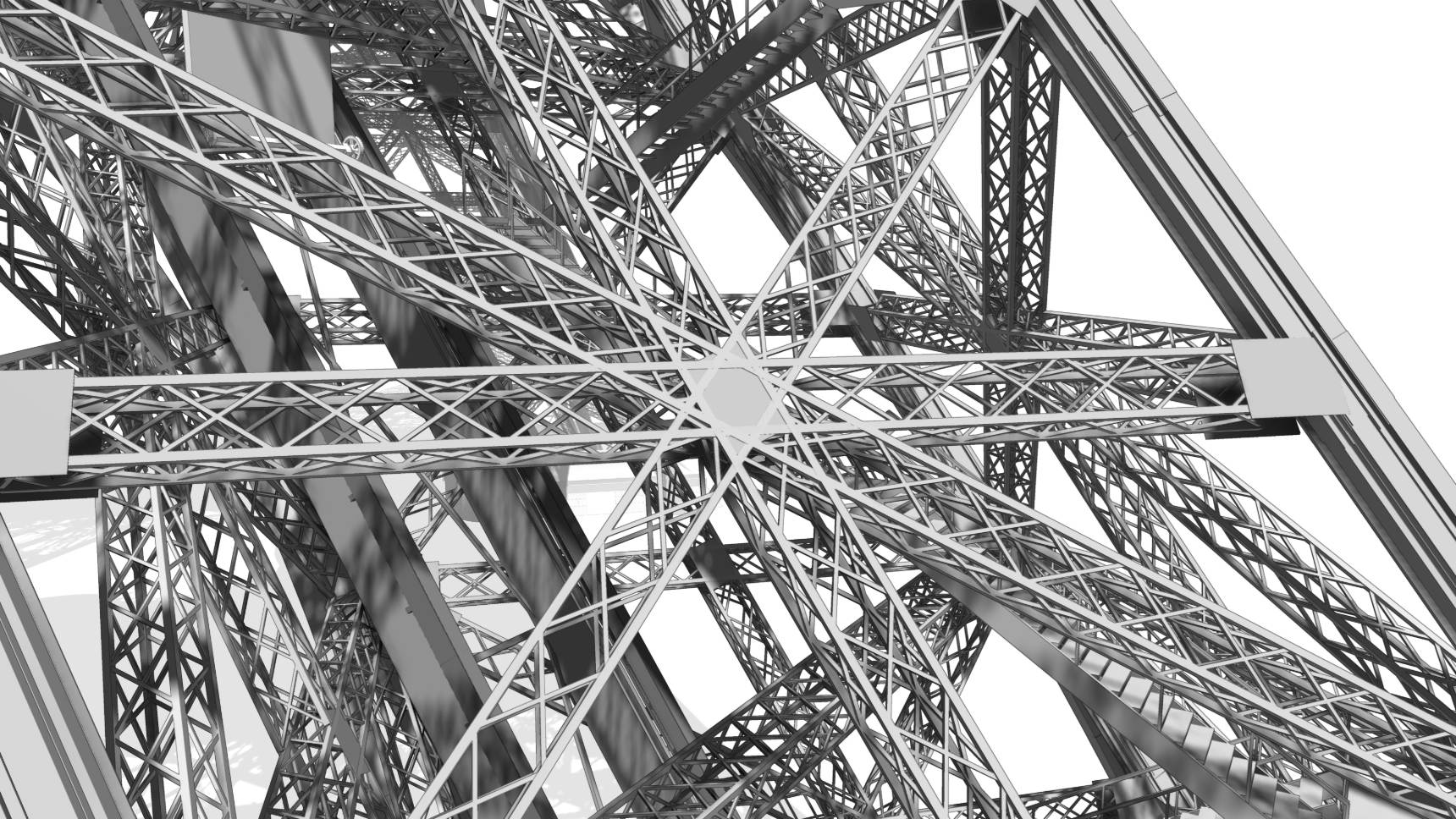

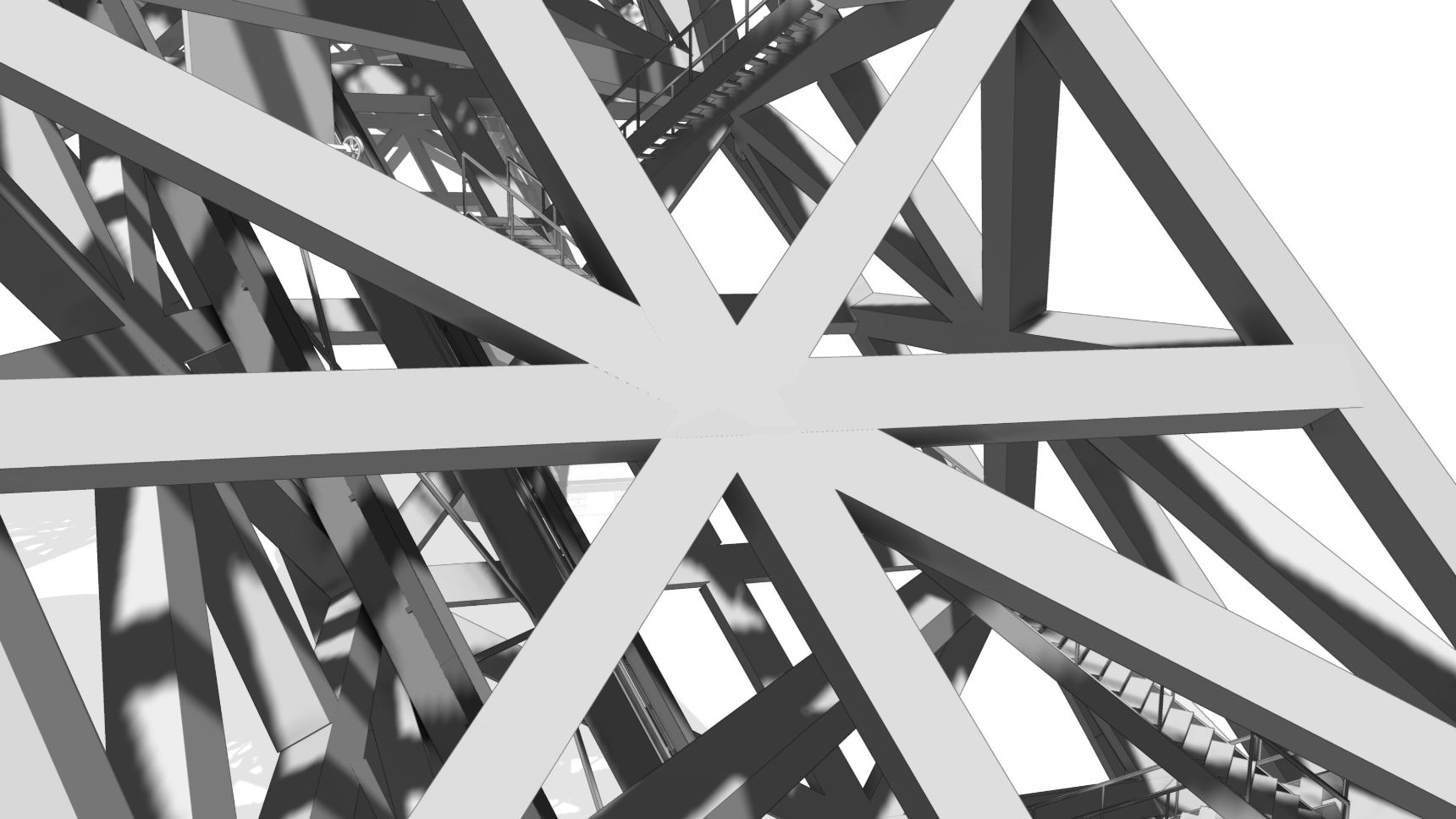

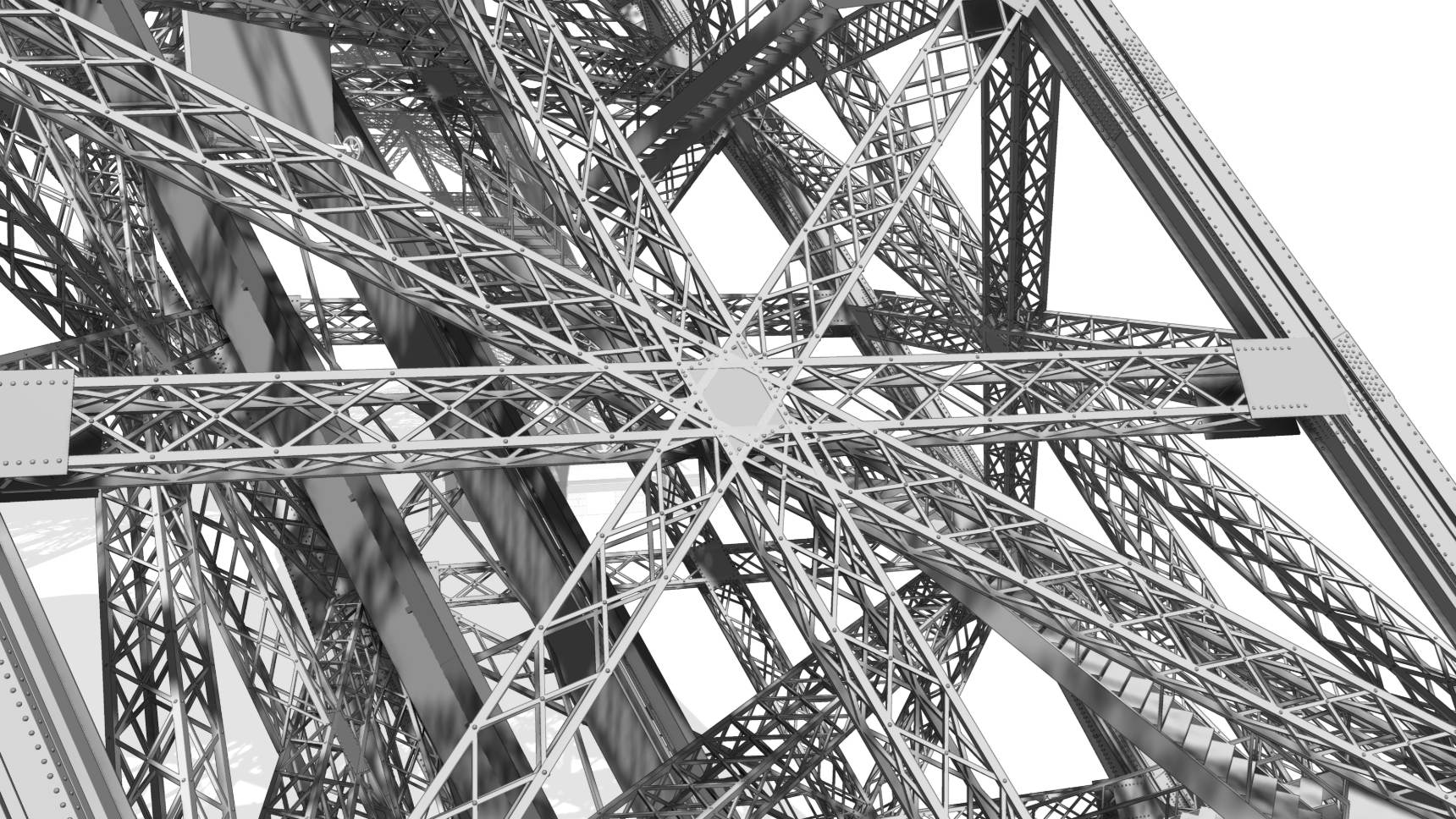

One camera pose at the three depths: panel 2 of a leg, on its lit face. The rivet heads in the third frame are about 19 mm in radius, the nominal head (each is driven a little differently; see Rivets), and resolve only at full size.

G. Eiffel, La Tour de trois cents mètres (Lemercier, 1900), is on Gallica as full-resolution scans, each plate in two halves of about 6000 × 8800 px.

Every number read from a source is recorded in demos/eiffel/SOURCES.md with its source key and one of four tags:

• sourced: printed on a drawing or stated by a source.
• derived: computed from sourced numbers, with the arithmetic shown.
• estimated: read off a drawing by eye, or a printed digit that is ambiguous.
• measured: a pixel reading calibrated on a printed dimension. This tag is used from §10 of SOURCES.md on.

Where sources disagree, every value is listed. The constants the demo sets itself are marked [estimated] in the code: the 50 mm joint clearance, the gusset reach, the 100 mm joint pitch and the 19 mm rivet head.

The conflict rules are applied the same way throughout:

• A plate beats a rounded official figure (57.63 m over the official 57 m).
• A plate at a larger scale beats one at a smaller scale.
• A printed number beats a pixel height.
• A height is read on its plate's own vertical scale, never the horizontal one. Near its foot, Plate I is drawn at 15.27 px/m vertically against 16.14 px/m across (above the first floor, about 16.1 px/m). A reading of Plate XI taken with its horizontal scale put the arch foot 0.5 m low.
• Where the album shows a post-1889 state, the 1889 state is taken from the text volume or from a figure titled for the 1889 Exposition.

A later reading does not overwrite an earlier one. The later section of SOURCES.md names what it supersedes, so a value is quoted from the last section that gives it.

Secondary sources are cross-checks, not inputs. C. Chouard's 2001 transcription of Eiffel's documents agrees with the plate's full widths, compared at two decimals, at 26 of 28 nodes. It differs at two: at IX it gives 16.47 against the plate's 16.46244, and at XXII 55.293 against 55.300, the value the plate's 27.10 and 14.10 give [derived].

A 2020 thesis that modelled the tower from the same drawings is cited where it is right and flagged where it is not. It reads the 36.00 m datum as 36 m of masonry, and gives panel 5 the slope of panels 1–4.

Plate XXXI prints, for each panel, its height and its full widths at its bottom node. Which widths it prints depends on the height:

• Below the second floor: the inner width and the leg's side.
• From there to the merge at XI: all three, the outer and inner widths and the leg's side.
• Above XI: one total width.

The model halves these into half-widths (defined below). The nodes are named by the plate's own Roman numerals, counting down from XXVIII at the bottom of panel 1 to I at the bottom of panel 28.

spec.ts carries the table as 30 rows: the supports (panel 1's line extended to the support centres), the 28 nodes XXVIII to I, and the top of panel 28. Nothing between two rows is stored. A height between nodes is linear interpolation, which is exact because the uprights are straight. The curve of the tower's profile is a 29-sided polyline.

Heights use two datums:

• y is height above the ground at the tower's centre, the datum of the official floor heights.
• h is height above the support centres, the datum Plate XXXI is drawn on.

The two differ by a constant: y = h + 2.50. A half-width is the horizontal distance from the tower's axis to a member's axis, measured perpendicular to a face, as a face-on elevation shows it.

The table closes. Summing Plate XXXI's printed panel heights from the supports gives the top of panel 29 at h = 273.63038 m; the plate prints the third floor at 273.63 m. The residual is 0.38 mm over 273.6 m. The structural nodes XXIII and XVII sit 0.23 m below the first and second floors, which the chain also reproduces exactly.

The node table and the floor levels are byte-identical in the first commit and the latest. spec.ts grew from 207 lines to 1,422 between them — the audit rounds, then the uprights as built, their splices and the plinths — and no node moved.

Eight modules build the tower: legs, shaft, first floor, summit, platforms, lifts, the flag and the ground. Under ?build, the erection's works and cranes join them. Each module runs at graph-build time. It reads spec.ts and computes what its parts need in TypeScript: station positions, masks, face normals, end angles, outlines. It then embeds the results in standard PCG-TS nodes. Each table becomes the literal rows of one pointList. What a point list cannot hold, per-primitive columns and masks, becomes field parameters.

Some outline work is the graph's too. A floor's deck is its outline less its wells, cut by polygonBoolean, and so is a summit slab with a well in it.

The TypeScript also draws the pieces that occur once, or differ each time they occur. What repeats, it draws once, and the graph copies it:

• a platform's fit-out, in the frame of one face, copied onto its faces;
• a bay, copied onto the bay stations;
• the boxes: one extruded unit box, copied onto a point per block;
• the ground's supports and massifs, and the lifts' machinery and wheels: one template each, copied onto their seats.

The copies are graph nodes, not vertex tables. The graph uses 22 node types at the skeleton depth, 24 laced and 27 with rivets, none of them custom, so it serializes to JSON. A test (tests/eiffelSkeleton.test.ts) asserts that the skeleton graph's round trip cooks to byte-identical positions.

Point lists and ramps

A table the TypeScript computes enters the graph through one helper, pointTable, as a single pointList node: a point per row, a column per attribute, the values written out.

Each column used to be a field instead, ramp(index(), stops) through indexTable, on a grid of points. Moving the tables to point lists took the skeleton graph from 2,363 nodes to 1,662 and its ramp stops from 161,856 to 16,073 (6e77795e). Those are the counts at that commit; the table below, recounted since, gives the skeleton 1,704 nodes. indexTable remains for what a point list cannot carry: primitive-domain columns such as faceN and the end sines, the edge rules' masks, and the chains' spawn.

The ramps that remain are compressed where they can be. A run collapses to its two ends whenever the ramp, interpolating between them, stores every entry of the run bit for bit. That holds for a run of equal values, and for a straight flight's treads, which are affine in the tread index. The largest ramp left has 344 stops at the skeleton depth and 3,432 laced.

The library's ramp was not always exact at a stop. An input landing exactly on an interior stop was answered as v0 + (v1 − v0)·1, which can round off the stop's own value. The byte-identity test that moved the tables to point lists found it, and the ramp now returns the stop's value there (fd41338d).

A ramp of more than 16 stops finds each point's segment by bisection, so a table with a stop per point costs n log n, not n². It used to scan its stops from the first. That is why the platforms module once cooked its prism lists in runs of at most 1,024 points: splitting took its cook from 0.80 s to 0.31 s then. The runs are gone with the lists they split. The platforms' boxes are copies of one unit box, and the few prism lists left are one table each.

Outputs and cost

Each module returns meshes grouped by part class, and the graph declares one output per class. The page also gets an output for each piece it moves or instances; under ?build, one for each of the erection's works; and, at the rivets depth, one for each rivet set, which is its own spawn:

So the skeleton has 67 outputs (no gussets), laced 68, rivets 126 and ?rivets=full 127, as the next table shows.

The columns come from two dates. Graph nodes, Outputs and Instances were recounted on 2026-10-18 from the page's depth queries, after deckUndersides became a class of its own (71193103). Mesh triangles, Cook and Graph JSON are from the measurement of 2026-10-02 (109f23f9).

• Instances match tests/eiffel.golden.json and count every batch. The 2,648 at every depth are the fittings and the lift chains.
• Mesh triangles are the cooked geometry alone. The instances draw their assets' triangles on top: 580,800 for the fittings and chains at every depth, and 80 for each rivet head. The page's total is 1,346,224 for the skeleton, 4,529,024 laced, 101,179,584 at rivets and 110,809,024 at ?rivets=full.
• Cook: the measurement ran on an Intel i9-13900KF under Node 22.20, headless: a CPU cook of a freshly built graph through the page's own depth queries, median of seven after a warmup, the depths interleaved, the process pinned to the performance cores. The column is the median of three such processes. On the efficiency cores the same cooks took 1.7 to 1.8 times as long when last compared. ?rivets=full was not timed under this protocol; one cold, unpinned cook took 12.4 s.
• Graph JSON is the compact serialized form, MB = 10⁶ bytes.

The machine was shared and busier than at the previous measurement: other processes held a median of 3.6 to 11.4 logical CPUs. Three control processes cooking the graph of the previous measurement (f2d5bc8) ran alternately in the same session. They came out within a few percent of these, so the cook time has not moved beyond noise. The node count and the JSON fell by about a third, the node count mostly from the move to point lists. The cooked outputs at all four depths hash identically to the committed golden file, tests/eiffel.golden.json.

Each region is a lattice of stations: a ring of positions repeated at every level, with station (s, k) stored as point k·R + s. A leg's ring is its four corner uprights, in the order c, b, a, d; the shaft above node XI has eight, the four corners and the four face centres. A web member is an edge rule: one connectByIndex node joining each station to the station ds along the ring and dk levels up, masked by a table that says where the rule applies.

Where one station grid describes a region, its parts differ only by which masks are set. The bracing, region by region:

Panel 10, the central posts, the gap X's and the base ties have station grids of their own. The belts, the Masque screen, panel 10's band and the entretoises are explicit member lists.

A central post lands on its horizontals rather than stopping clear of them. Its end is placed where its far corner clears the horizontal, so the near corner buries in the member (6687913e).

The upright lattice adds a vertex 0.01 m either side of every node where the slope changes, except XVII, where the upright is split instead. The kinked nodes are computed from the table, not listed. The extra vertices date from when an upright was a square section swept along its chain. A sweep puts one ring per vertex in the bisecting plane, and the extra vertices kept the skin between two kinks from twisting. The leg and shaft uprights are no longer swept. Their chains are the axes the built-up plates are set from, and the extra vertices stay because tests read them.

A leg's four uprights, the arbalétriers, are box columns riveted up from plates and angles. Plate XXXI's tables print the makeup of each one, panel by panel, and the model builds them from those tables (builtup.ts, UPRIGHT_SECTIONS and UPPER_SECTIONS in spec.ts).

Below XVII the box is a constant 0.877 m square in plan. Its faces lie in the tower's face planes, and its plates grow inward as they thicken [sourced, text]. Cut square to the leaning axis, that section is a lozenge, not a square: 101° 38′ in panels 1–4, the angle Plate IX fig. 28 prints, which the node table reproduces as 101.64° [derived]. No square section swept along the axis can take that shape. So each panel's upright is four web plates, each a flat box in its own face, straight within the panel. The swept skin this replaced was 0.82 m square below the first floor and rolled 11.6° off the x-facing faces.

The built plates check against Plate XXXI. Their widths come within 2 mm of every web width it prints from XXVIII to XIX: 800 in panels 1–4, 822 in 5, 832 to 866 in 6–10 [derived]. Panel 11's widths miss by up to 7 mm, because the plate prints XIX's for XVIII. Rebuilt from their parts, the plate's member areas and its Ω (the four arbalétriers' total per panel) close exactly, except at XX b, where the plate's own arithmetic is 2 mm² out.

At the turns

Where the column turns, at XXIV to XVIII, the two panels' faces meet on the node's horizontal line. That line crosses a plate's square end at up to 24°, and a box cannot mitre on it. So each plate ends where its centre line crosses the node's horizontal plane, and runs on a little to close the sliver.

Measured on the cooked plates, no point of the true faces round a turn is left uncovered. At worst a plate stands 21 mm proud of the face or 14 mm short of it. A notch under 10 mm wide stays open at the corners just above each turn, deepest at XXIV and XXIII, up to 7.3 mm. The thickness steps at the node, inside the box, where it cannot be seen.

What stands out of the box

The skeleton depth draws the webs alone. From the laced depth up, what stands out of them is drawn too, so the envelope anything else is fitted to is the same at every depth. Nothing inside the box is drawn. Below XVII three things stand out:

• On every face, a cover strip, the C.J., over the butt of the two half plates (205 × 12 or 200 × 12 in panels 1–5).
• On the exterior faces of panels 1–5, two angles back to back on it, their outstanding legs a fin 24 mm thick standing 100 mm proud [sourced, Plate IX figs. 23–24].
• On the interior faces of panels 1–5, a channel of two angles, heels 385 mm apart, the seat of the montants' gussets [sourced, Plate IX fig. 21].

Above XVII the legs' b, c and d and the shaft are 0.50 m boxes, the 500 taken as a plan square [derived]. At the merge at XI the axes of b and d of neighbouring legs stand 0.50 m apart, so the boxes touch. From panel 18 up, b and d are one T, 1,000 wide in panel 18 and 500 × 500 from panel 19 [sourced]. The shaft's corner c is a closed box through panel 18 and an open L in panels 19–28, closed by 8 mm plates 1.05 m either side of each node [estimated, measured off the joint plates] (6cc56d70, 247084e0).

Where the webs land

A web member's joint meets that box. Below XVII its r in the joint rule is the box's in-plane half-width plus what stands out of the face it lands on: the channel in panels 1–5, the C.J. in 6–11. Its gusset plates stand 8 mm off the webs they lap (see Joints). Where the first floor lands on the uprights is in Regions.

Splices

A column was erected in tronçons and spliced under cover plates. Where the joints fall depends on the panel:

Every ply of a joint ends in the one plane the text names, « même plan normal » [sourced]. The exception is panel 5's bends, which Plate X fig. 19 draws level: there the plies end on the node's horizontal plane.

The covers on panels 1–5 are Plate IX's, at their printed sizes: a 290 × 15 web cover on an exterior face and a 380 × 12 centre cover on an interior one. Panels 6–11 take Plate X's, with lengths taken as panels 1–4's [estimated]. Above XVII there is one 12 mm cover over each outer plate [estimated] (SPLICE, a58ec0e9).

Their rivet fields are measured on Plate IX: every 0.076 m in staggered columns on a web cover (fig. 23), every 0.064 m in a grid on an interior one (fig. 21) [measured]. They add 271,144 heads at the rivets depth, 22.5% of the total. Commit a58ec0e9 records what it left: 98 splice heads within a head's width of the first floor's rows, and 1,104 covers 1–10 mm into joint plates (up to 41 mm for the fin angles' covers).

Every edge rule also writes the unit normal of the lattice face its member lies in, as a primitive attribute faceN. It is the cross product of the ring segment and the line joining that segment's midpoints on the two levels, which is exact for the trapezoid faces of a tapering section. A member's section axes follow from it, as N = normalize(F − T(F·T)) and B = N × T, so its section sits flat in its face. With the default +y up hint the section would be squared to the vertical instead. In panel 1, where the faces lean 26.7°, that rolls one diagonal's section 30.4° off the face its rivets sit on, and the other diagonal's 39.5°.

One detail makes this work in a graph. Edge-rule members share their end points, and a sweep resolves its up hint per point, so a shared point cannot carry two faces' normals. Each member is therefore first resampled onto two points of its own with pathResample, which carries the member's primitive faceN down onto them. The few uprights that are still swept, panel 29's and the summit girders', take a constant +x hint instead, which keeps a near-vertical member square to the tower's faces. The leg and shaft uprights are built from plates (see Uprights).

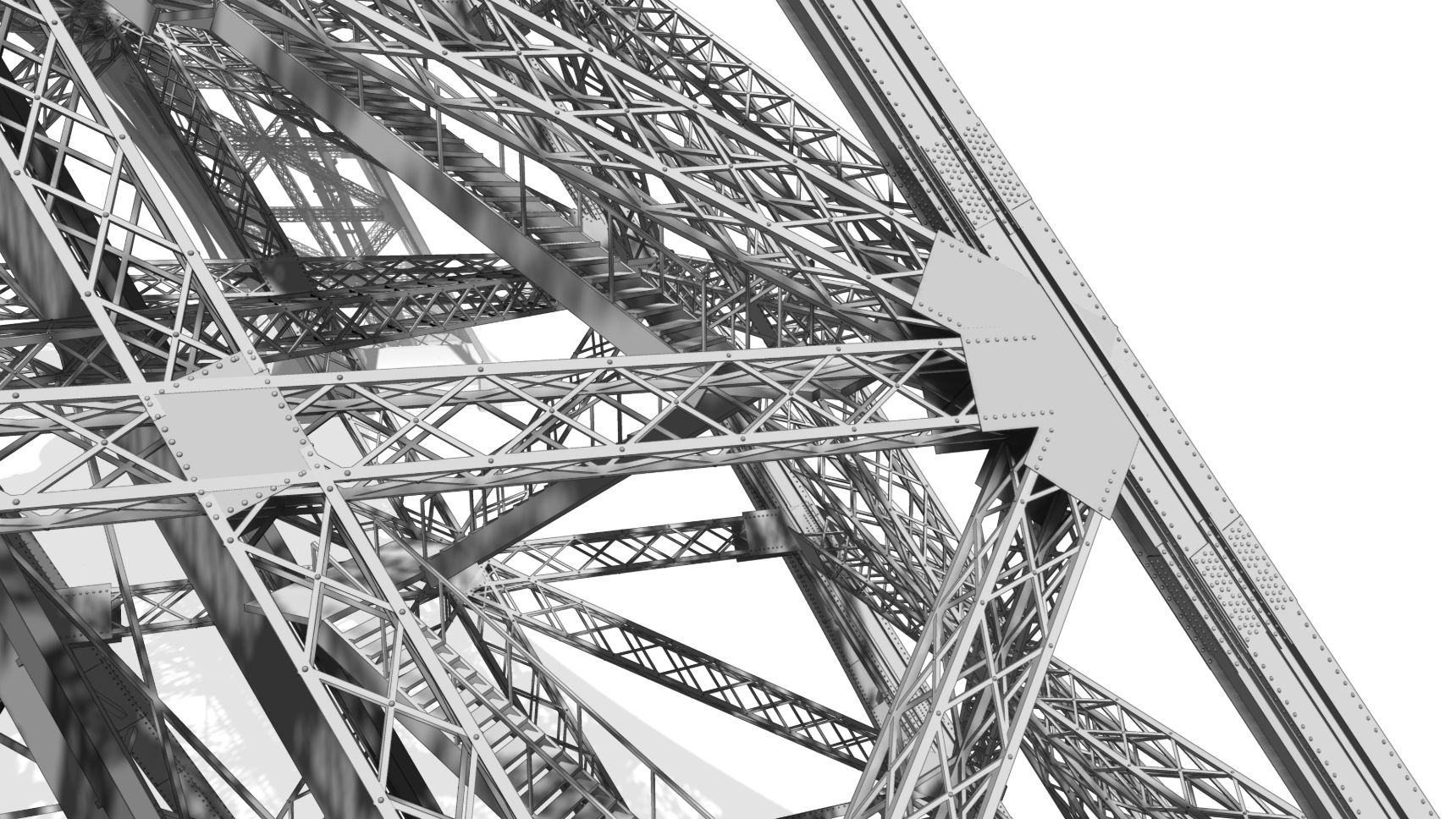

At the laced depth a web member's path becomes four chord paths, offset to the corners of its section, and eight lacing paths: two per face, in opposite phase, which puts one X in every lacing bay. The chords are swept as 90 mm squares and the lacing as 45 mm squares, both squared to faceN. The member types are the plates'. In the web the "800" strut runs to 100.6 m, the "600" to 110.6 m and the "500" above; the horizontals are 800 to 115.5 m and 600 above.

In the legs and the shaft the lacing step is set per member, by the member's own outer width: 1.00 m for the 800, 0.94 m for the 600 (measured on the shaft's horizontals), 0.68 m for the 500. The first-floor and summit webs and the first floor's entretoises lace at 45°, and the legs' entretoises at 0.79 m. Where the plates show a different step in a particular panel, a height band overrides it — the legs' 500s in panels 12–17 run at steps from 0.69 to 1.01 m, each read from Plate VII. The step is a field evaluated once per member on the primitive domain, from the member's mean height.

A web member run from upright axis to upright axis puts its lacing inside the upright's box. The first version did exactly that, with up to 15% of the shaft's lacing inside an upright. So each member end that meets an upright is trimmed to its joint start: the distance along the member at which its section clears the upright by 50 mm. A point a along the member and w off its axis lies a·sin t − w·cos t from the upright's axis, where t is the angle between member and column, which gives

jointStart = (r + 0.05 + w·cos t) / sin t

with r the upright's half-width at that height and w the member's in-plane half-width. Below XVII, r is the built-up box's greatest in-plane half-width plus whatever stands out of the face the member lands on: the channel in panels 1–5 or the C.J. in 6–11 (0.5021 m at XXVIII). Above XVII it is the 0.50 m box's 0.25.

The edge rule records the angle per member end, as the sine against the column's bisector at the station. At a kinked node it uses the smallest of the sines against the bisector and the segments below and above, because at XXIII the bisector would place a horizontal's bottom chord 20 mm farther from the upright than it is.

Each end then receives a pair of gusset plates, one either side of the member's face plane, from the upright's face to jointStart + reach. The plates of the members meeting at a node overlap to form the node's gusset. No rule needs to know which members meet there, because each member places its own plates. Below XVII the plates meet the built-up uprights through a table of their own, jointFace, and stand 8 mm off the webs they lap.

While the joints were built (b0d0f01), an independent check found 496 joint rivets (1.7%) up to 127 mm inside an upright: the clearance had been a fixed distance along the member. Solved from the meeting angle, as above, it left none inside, with a minimum clearance of 173 mm.

The second kind of plate is over a crossing. Wherever two laced struts cross in a lattice face, the tower rivets a plate over them, one either side. That happens where a panel's two diagonals bisect each other, where a post lands on a horizontal, or both at once. The sources name two. Plate VII fig. 2 draws the plate at the gap X's centre, and Plate XIV fig. 5 bis the « 2 Goussets 1.130 × 10 » where the summit's diagonal girders cross [sourced].

The model treats every crossing in a lattice face as the same joint [rule] and builds them all in one place, crossing.ts: 444 crossings and 888 plates in the legs and the shaft, and 240 crossings and 480 plates on the first floor (641c6174, 7fa7b878, 37f318ed).

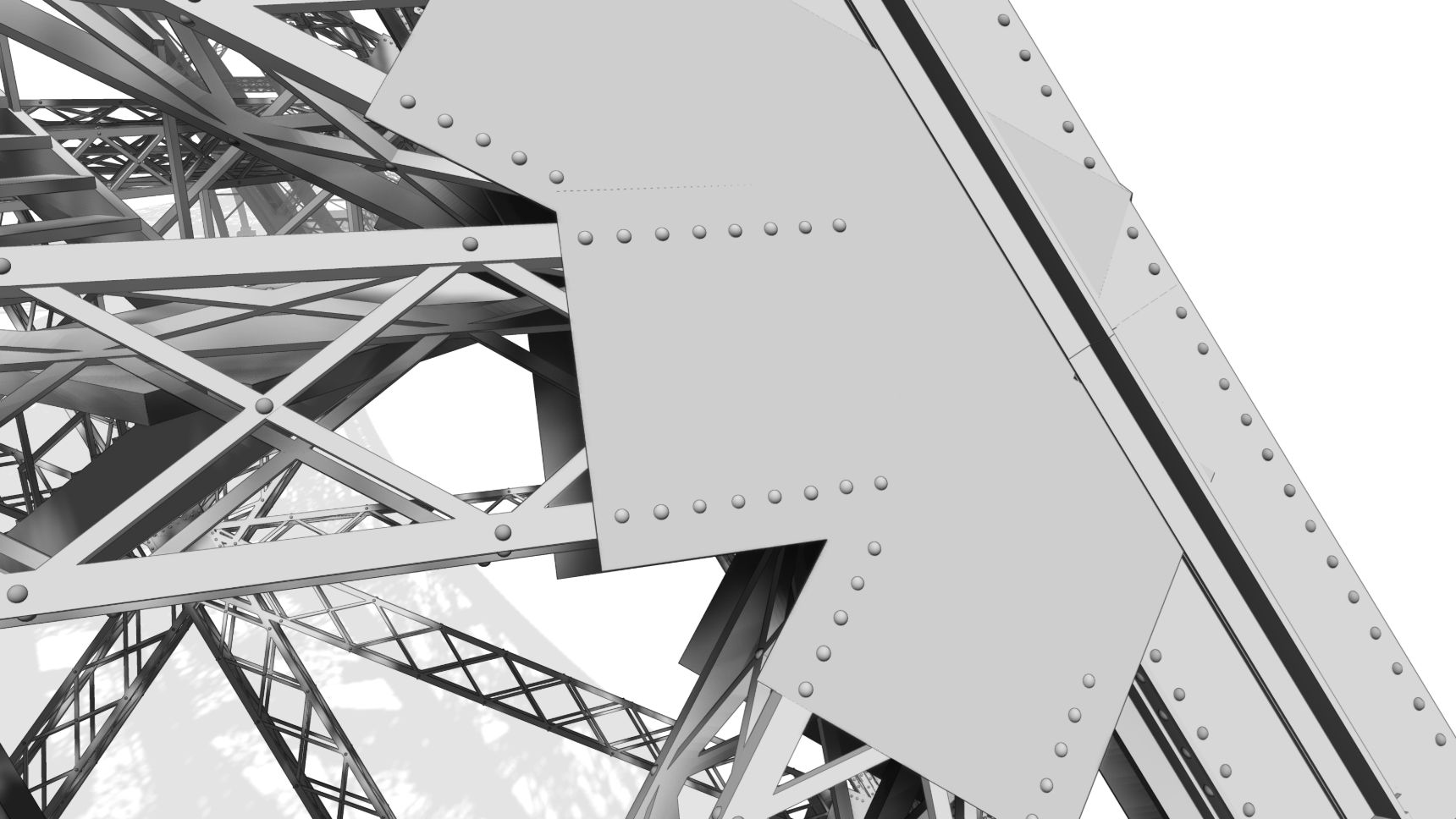

A plate is 10 mm thick and lies in the members' shared face plane. It sits under the corner angles' outer face, so the angles run over its edges while it covers the lacing between them. How far under, and how wide across an 800, are set by eye rather than read off a plate [estimated]. They are the two values the page lets a URL override (?plateSet, ?plateEdge). No lacing rivet is placed under a plate or on its rows (63de7af1).

Three rules place most of the rivets: 878,108 of the 1,205,292 heads at the rivets depth, 72.9%.

• Lacing rivets are where a lacing bar meets a chord: eight per strut section at every lacing sample, on the chords' outer faces, and one at every crossing of a face's two zigzags. Plate X figs. 12–13 draw those crossing rivets on the 800s of panels 6–9; riveting every laced strut's crossings that way is inferred from them (d01814e1).
• Seam rivets fasten a box member's corner angle to the plates it joins. On an upright they run in rows 55 mm in from each corner, every 125 mm, laid on the built-up box's true faces and centred on the stretches between nodes, plate ends and splice covers. The first floor's chords and posts carry the same rule.
• Joint rivets fasten a strut's two chords to each gusset plate, every 100 mm over the plate's reach, and never nearer the upright than the joint start.

No lacing head is placed under a joint or crossing plate, nor on its rows. No source prints a seam pitch; 125 mm is measured on Plate IX's gusset detail. Where a pitch is printed or measurable elsewhere, that figure's own is used: the splice covers' fields, and the spacings Plate X prints along the base ties' bars.

Summed over the rivet outputs of tests/eiffel.golden.json at the rivets depth; the seven rows total 1,205,292. ?rivets=full adds about 120,000 more, the rows along the built-up uprights as Plate IX draws them in panels 1–5, with panels 6–11's taken as in panels 1–5 [estimated].

Against the book. The rules are not stretched to reach a total. Eiffel's text prints one count: 1,050,846 rivets driven on site, on the Champ de Mars [sourced, text p. 113]. The 2.5 million often quoted for the whole tower is not printed in it, and the model keeps it only as a flagged secondary figure.

Each rivet output is classed shop or site by one rule: site where the pieces it fastens arrived separately [rule, from the text pp. 75 and 100] (rivetClass, 352b0c47). Counting a rivet drawn with both heads once, the model drives 334,659 site rivets, 32% of the book's (tests/eiffelRivetCount.test.ts). SOURCES.md §27.4 sets out where the rest is. Some is site riveting the model does not draw, such as the platforms' floors, the stairs and the lifts' girders. Some the model draws but classes shop, such as the first floor's joints. The test holds the model under the book's count, never over it, rather than tuning toward it.

The page draws site heads a step lighter and rougher than shop heads [estimated], and the "Site rivets" checkbox or ?site picks them out.

Hand-driven heads. A head closed with a hammer is never quite the drawn one. Every rivet output carries a per-head headDrive value, drawn by randomField from the head's position and seed, so it is the same on every cook. The page turns it, once, at load, into a head up to 4% wider or narrower, up to 12% higher or lower, leaning up to 3°, turned, and set up to 1.2 mm off centre, with its rim kept on the plate (heads.ts, 84e32257). The four amounts are [estimated]: no source measures a head. The turn has no amount, because it can take any angle about the head's axis.

Each rule ends in a spawnInstances node that emits a batch of transforms against the asset id "rivet". The batch carries the true size in its matrices, so a host resolves it against a unit head: a spherical cap of base radius 1 and rise 0.7, 80 triangles.

This page does not draw the matrices. It packs each head into 24 bytes (its seat, a rotation, a width and a rise), folds the drive in, and rebuilds the head in the vertex shader (rivetPack.ts, 13532b4c). ?cpuRivets restores the matrix path.

Rivets receive shadows but do not cast them. A 4096² map over the whole tower gets about 9 to 10 cm a texel on its longer side under this light, so a head 13 mm high throws nothing it could resolve, and casting would put every instance into the shadow pass.

Before the first rivet commit landed, an independent check found rivets up to 19 cm inside a plate. A size table stepped 1 cm past a node, and the skin read that as an 11 m taper; the commit fixed it. After the first audit round, every rivet the three rules then placed sat within 0.04 mm of its steel. The later rules record their own residuals in their commits; the splices' are above. One known residual at full depth, first-floor heads crowding the rows as built, is pinned by tests/eiffelRivetCount.test.ts.

Nothing exactly coplanar. The tower is drawn from one set of dimensions, so its parts meet EXACTLY: a member's end face on the horizontal it lands on, a rivet's rim on the plate it fastens. Coplanar is the one thing a depth buffer cannot resolve. The page's buffer is logarithmic, so its resolution is set by far alone. The depth written is

log2(1 + w) / log2(1 + far)

and one step of a 24-bit buffer is 0.27 mm at the 608 m the page opens on. Faces that meet exactly flickered against each other as the camera turned.

So at the end, everything the graph outputs except the chains, the flag and the erection's works is moved off its plane by up to 1 mm per axis: every mesh class, the lift parts, the fittings and the rivet batches. A ruler laid on the built model therefore reads neither the residuals above nor the exact dimensions. The offset is keyed on point identity rather than on an array slot, so it is a property of the built tower and not of a cook order.

It was measured at the laced depth when it went in (1c11fcd5). Of the 13,716 gusset points that then lay exactly in an upright's face plane, none still did, and about three quarters cleared a depth step at the opening pose. The cost is that two coincident points carrying different seeds part company. That opens cracks of about a millimetre where one member lands on another: a fifth of a pixel here, a pixel in the closest figure on this page, and visible only if the camera is driven to its 0.2 m limit.

Every leg member is built once, in the +x+z quadrant, and copied onto four targets rotated 0, 90, 180 and 270° about the vertical. The entretoises are the exception: they are built twice, as the Roux and Otis variants, and each is copied onto two legs.

copyToPoints composed each copy's position and rotation, but every other column rode along unturned. Copied as-is, three of the four legs would carry a faceN pointing the source quadrant's way, and a box copied onto a turned target would be lit as if it had not turned. From its second commit the demo corrected faceN after the quadrant copy, with a chain of three nodes and a quaternion written in the field grammar. That was recorded as a gap in the library, and fixed there.

copyToPoints now takes rotateAttrs: a list of f32 tuple-3 columns turned by each copy's target rotation, on the point, vertex and primitive domains. It applies the rotation and, under mirrorAware (on by default), the signs of the target's scale, so a mirrored copy's normals stay outward and its faces' winding is reversed. It never applies the scale's magnitude. No eiffel target is mirrored, so for the tower it is rotation only.

It refuses P, rot, scale, seed and the bounds by name, with a message listing the valid columns. The default is an empty list and byte-identical to the old behaviour, so the corpus golden file did not move. The demo switched over in two steps:

• The leg members (12f0ec8): no output count changed. The turned normals agreed with the workaround to one f32 ulp, and positions moved by at most 7.6 µm.
• The box normals (09c2f9a): 17.18 million position values stayed bit-identical, with normals within 2.1 × 10⁻⁷.

rotateAttrs set the pattern: a workaround in the demo is recorded as a gap in PCG-TS and closed there, and the demo then drops the workaround. The tower has driven several more. Each is a general node or mode, documented in the node reference; none is specific to the tower.

The same piece of work added four nodes the tower does not use: pathClip, segmentCrossings, bridgePaths and splitPolygons, along with transferByIndex's outNames. They came out of what the demo's TypeScript was doing — finding where bars cross, cutting a path, bridging two — and each has a teaching graph in the corpus (basics-clip-a-path, basics-where-bars-cross, basics-bridge-two-paths, basics-split-a-window). No eiffel graph uses them: the tower still finds its crossings in crossing.ts. One library trap is still open: mergePrimitives fills a column missing on one input with zeros, which a lit material shades black.

The ground module (ground.ts, SOURCES.md §31) builds what the tower stands on, from the text's pp. 85–104 and Plates II to VI. It works to one convention the plates disagree with: the model's ground is a single plane at the tower centre's 33.50 m, y 0, while the Champ de Mars round the piles stood higher. Everything under it is placed at its printed cote, and what the plates carry up to the higher ground is cut off just under the model's.

The supports. Each of the sixteen uprights ends on a stack built along its own axis and square to it (6ce08cbb). From the bottom up, with the bolts that hold it down:

The two 800 t jacks that set the tower moved from support to support and were not left in place [derived from pp. 102 and 117], so none is built.

One departure carries through the whole ground. The model's uprights run down to the sommiers' centre, Plate XXXI's support node, where the iron really ended 1.10 m higher up the axis (Plate VI fig. 8's chain, 200 + 715 + 50 + 125 + 10 mm). The stack is therefore built under the model's upright, and the supports and the massifs under them stand 1.10 m down the axis from their printed cotes [derived] (SUPPORT.stack).

The foundations. Sixteen massifs, one under each upright's stones, are truncated pyramids of rubble in cement on the tower's diagonal: a vertical front, a top square to the upright, a rear face parallel to the leg [sourced, pp. 86–93, Plates III and IV; the lengths derived from the printed profile]. Piles 2 and 3 stand on 10 × 6 m concrete footings on the gravel [sourced, p. 86].

Piles 1 and 4, on the Seine side, stand on eight compressed-air caissons, one under each massif. Each is 15.24 × 6.00 m (the first one sunk, pile 4's N° 1, 14.24 m long) with rounded corners, filled solid with concrete in its iron shell [sourced, pp. 88–93, Plates II and IV]. The corner radius, 1.0 m, is derived from the printed area, « 90,60 m q ».

Between them stand the walls of piles 1, 2 and 4, as the 18 piers of a printed run whose arches spring above the model's ground [sourced run; which end it starts from estimated]. Under piles 2 and 3 are two cast-iron earthing pipes each, 0.30 m across and 18.00 m long [sourced, p. 86, Plate II; their depth derived] (c3ae6979). Not built: the caissons' shafts and airlocks, and the lift massif's pit and cage; that massif takes the same rule as the other three [estimated].

All of it is under the ground plane. The page's section view opens it on the plane Plate XX's diagonal section is drawn on, x + z = 0, keeping pile 4's half and taking away the ground over pile 2's [the plane sourced; keeping pile 4 rather than pile 2 the model's choice] (see Rendering).

The machine room under pile 3 has its floor at 30.50, y −3.00 [sourced, p. 88 and Plate III fig. 4] (18827652). It holds the boilers, the pump-engines and the coal store, as massing where Plate III fig. 4 draws them at 1:200 [measured: positions read at 1:200, ±0.3–0.5 m; unprinted sizes estimated], and the Otis lift's motor girders run through it. A vaulted flue, 1.30 × 1.70 m, runs « 116m23 » to the chimney [sourced, Plate IV fig. 15]. The chimney, 17.23 m over its footing [sourced], is still modelled, as a solid the clearance checks read, but no longer drawn.

The plinths (b78ce979) are Plate V's:

• a gorge traced in 11 tiers on fig. 17 [measured, scaled to the model's height];
• the inner corner swept on an arc of 3.29 m, with a bench along it, its sill 0.70 × 0.10 and its seat 0.48 m [the arc measured on fig. 12; the bench's existence p. 95; its sill and seat sourced, fig. 19];
• rusticated courses of blocks 1.53 × 0.50 m, staggered, 88 to a plinth [measured, fig. 15];
• a door 2.58 m wide on each inner face [sourced, fig. 16].

The open point is the height. Plate V puts the plinth's foot on the piles' floor, 1.58 m above the model's ground. The model keeps its plinth on its flat ground, so it stands 1.58 m low. Raising it means raising the ground round the piles and moving the arch's piers with it, and SOURCES.md §31.2 leaves that for a decision.

The piles are numbered as on the plates: 1 Nord, 2 Est, 3 Sud, 4 Ouest, clockwise from above; pile 4 is the +x+z leg the model builds and copies. The supports and massifs are copied in the graph onto the same quadrant targets as the legs. Tests: eiffelSupports, eiffelFoundations, eiffelPlinths, eiffelGround.

The first floor is built on one face, in two planes, and copied to the four faces. The two planes are the face plane and a plane 15.00 m inboard, at the legs' inner uprights. Its arch is two concentric circles, radii 36.4064 and 40.32373 m, turning to a lower arc of 44.5258 m where it meets the upright. There are 14 montants per half, at a 4.011° pitch, and each of the arcade's heads is the incircle of three lines, solved by Cramer's rule. If the montants and the upright disagree, the builder throws, naming the montant and the plate's rule.

The arch lands on the uprights as they were built. The first floor's landing ends meet b's web, and its members land on the webs of b, d and a, never on the tip of a fin, as Plate XI figs. 3, 5 and 11 draw them on b's (0d114215).

Ironwork

The arch's ironwork is Plate XI fig. 14's decorated panel (d40142a9). Each panel has a round-headed frame « Ame 160×7 », three bars « Corn 100×45 », four cast volutes « Volute en fonte 80×45 » and macarons [sourced, Plate XI fig. 14 and p. 80], 125 mm across [measured on its 1:10 detail].

The text puts the motif on the arch's inner and outer faces and leaves the other two plain. On every tower face the model dresses the decorated side of both arches, the one in the face plane and the one 15 m inboard: 26 panels each, 208 in all. It keeps a volute only where half its width clears every panel edge and the frame and bars [rule], which leaves 752. The frame and the bars are built at every depth, the volutes and macarons from the laced depth up.

The 1889 dressing

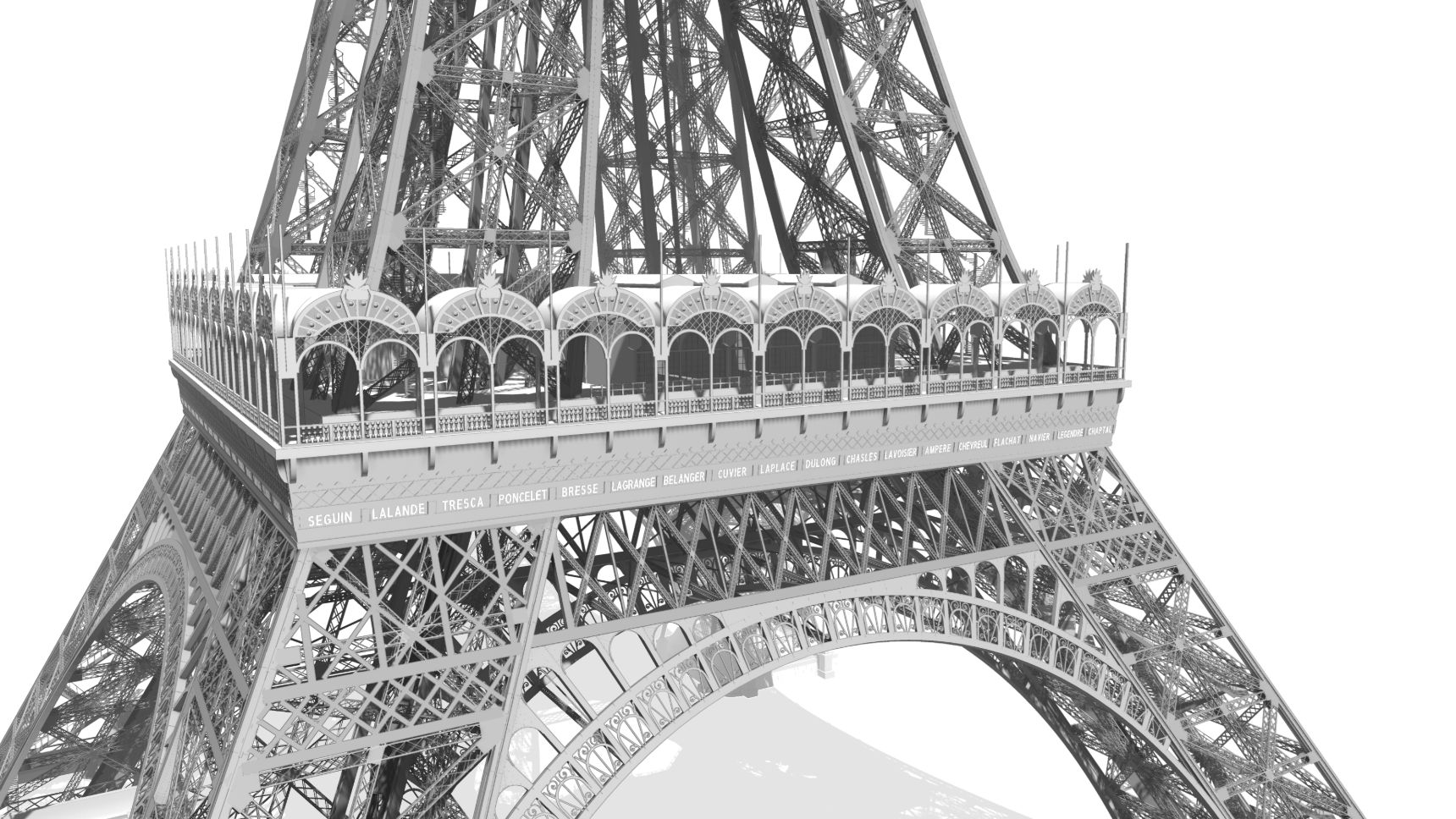

The first floor is dressed as in 1889 (cdf757b9, ff08b7bc; SOURCES.md §10). One rule builds the four pavilions: cornice, posts, balustrade, pinnacles, timber screens. Each face then takes its own dressing from Plates XXIX and XXX: the Russe on the north-east face, the Français south-east, the Anglo-Américain south-west and the Flamand north-west. The Français and the Russe have entrance flights at their fronts as Plate XVIII draws them; the Bar Anglo-Américain and the Flamand have none [sourced; the Flamand read from the plate's Théâtre, estimated].

The gallery has 36 arcades [sourced: nine a face, and the ledger's « 36 arcades »]. Each is dressed once and placed on all 36: a stamped-zinc crest measured on Plate XIX fig. 1, and yellow glass cabochons in the crescent's twelve cells [the cabochons sourced, text; twelve counted on the figure], 432 in all [derived]. The balustrade has 720 balusters, the number the ledger records set (p. 217), not the 560 that p. 213 gives. The inner arcade is Plate XIII's; the gas globes' placing is assumed.

Glass is its own class (3b5a9668): the pavilions' doors, screens and tympana, and the summit's croisées. The arcade's crescents are « verres coulés étamés », silvered glass, and have a class of their own, silvered. The second floor is built in its 1889 state from Plate XIX fig. 7, its unprinted heights assumed.

The summit

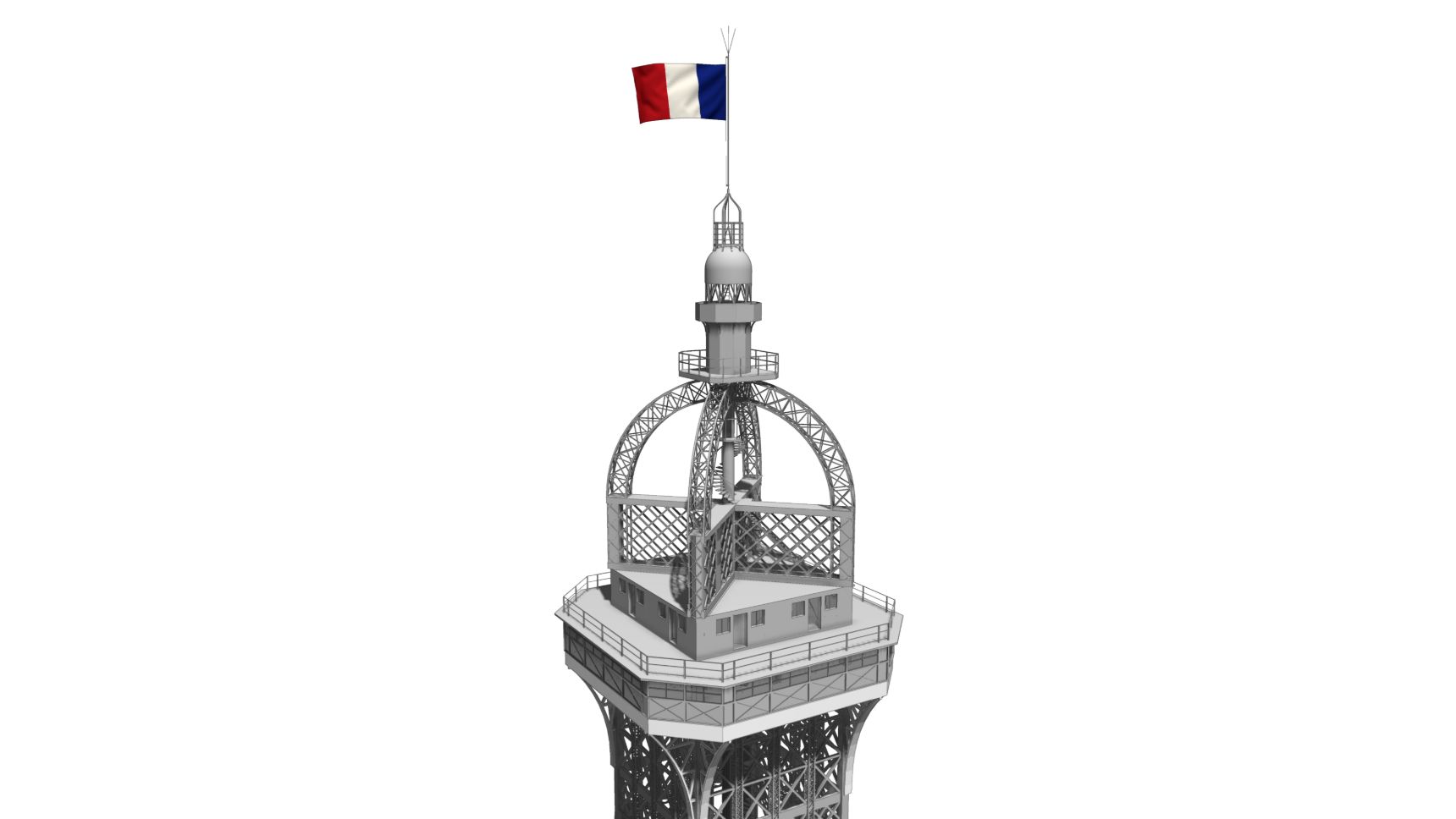

The summit was read wrong twice. Face-on, the structure above the third floor shows two 0.80 m columns at its corners, and two readings took them for a box. The third audit's blind reader established that they are two diagonal lattice girders, 14.870 m by 1.130 m, crossing over the axis: the north-south one continuous, the east-west one butting against its webs. Above them stand a dome of four half-arches, the lantern and the rod to 312.275 m. A plate of « 2 Goussets 1.130 × 10 » covers the girders' crossing (see Joints).

The top is built room by room (44c1d6cd; SOURCES.md §29):

• The glazed gallery, with its 24 croisées [sourced, the cost table].
• Eiffel's pavilion, 10.50 m square, with the rooms Plate XIX fig. 6 draws [sourced; the two unnamed laboratories read as electricity and meteorology, assumed].
• Four contrefiches, 600 × 762 mm [sourced, Plate VII fig. 4].
• The lantern, a decagon of 0.80 m sides [sourced, p. 79], its posts bearing on the cupola as built (26b76dc4).
• The rod, the lightning conductor that carried the flag, 10.790 m long [sourced, Plates XV and XIX], with its tip at 312.275 [sourced, Plates VII and I].

The top's slabs are outlines with their wells cut out in the graph, and the last ladder bears on its manhole (c0255f8e). On the rod flies the tricolour at Plate XIX fig. 4's 5.50 × 3.00 m. The text gives 7.50 × 4.50; the model carries both and uses the plate's (b6fbc49d). The graph builds the flag flat, and the page flies it (see Rendering).

Seventy-two names of French scientists and engineers run round the first floor's skirt, 18 a face, on a band 0.80 m high [sourced, Plate XIX fig. 1], 4.02 to 4.82 m below the gallery floor [the top measured]. Which names are on which face comes from Plate XIX's headers and from Barral's 1892 account. Their order left to right is observed on photographs, because Plate XIX's elevation shows only the south-east face (savants.ts; 411724c2). They are spelled as cast, without accents, as the photographs show them, and the list's « Couchy » is corrected to CAUCHY. The plaques are painted iron with the skirt; only the letters are gilt.

The letters are geometry, not a texture or a font. letters.ts draws 27 glyphs, A to Z and the hyphen of GAY-LUSSAC, each from stem, bar and ring pieces [rule]. Their stroke weights are fitted to a photograph, and their proportions are the module's own estimates [estimated]. No 1889 photograph is sharp enough to read the letterform, so the forms follow the 1986–87 restoration [observed]. The cap height is about 0.60 m, from Barral (p. 19, a secondary source) and a measure on a photograph; Eiffel's book gives none.

The layout is computed in TypeScript. In the graph, the glyphs' pieces enter as one pointList of outlines, become closed paths, are extruded together by one extrudePolygon, and are copied by copyToPoints onto 491 places: 490 letters and one hyphen.

Eiffel's 1900 book prints Hénocque's count of the stairs: 1,710 steps, in five runs of 347, 327, 456, 455 and 125 [sourced, p. 304]. The model builds all five (stairs.ts, 9e20c20a; SOURCES.md §11), each from what the plates and the text give for it and a rule where they stop:

Treads placed: 2,998 at every depth, from 1,688 built; the ground run is copied onto its two piles and e1 onto all four. A run places fewer treads than the book counts steps where a slab or a landing takes a tread's place. Counted from stairRuns() at 109f23f9, 2026-10-02.

Two numbers depart from a source, and are recorded as such. The plates give the ground run 351 steps against the book's 347; the model keeps 347, an open decision in stairs.ts. The e1 helices are printed at 0.178 m risers, and the model runs them at 0.1710 to 0.1745, 0.1728 on average, to land on its floors. Not built: e2's foot of « 11 marches », and the ground stair's arrival turns. Separately, e1's last flight clashes with the Otis car, a bounded exemption recorded in SOURCES.md.

The stairs are drawn for eye level as well as for a distance (bdf4a963): landings as sectors, headroom over the turns, the core's door, the manhole at the top. Tests hold the clearance and the headroom (eiffelStairsClearance, eiffelStairsHeadroom). Treads run into their newels, posts reach their rails, and newels and stringers stand on floors (023d40f8; see Nothing on air). The geometry is TypeScript producing boxes and lines. lifts.ts turns them into graph nodes (meshPrimitive, copyToPoints, the quadrant copy, and pointsToPath for the rails), and the page's walk, ?walk, climbs all 1,710 steps on the stairs' own lines.

The cars. The 1889 tower had lifts by three makers, and the model builds all six cars (lifts.ts; SOURCES.md §11, §34). Their routes are as the plates and the text give them [sourced, Plates XX and XXI and the text], and the cars are the book's:

The leg cars are cabins, with frames, doors, glass and benches (61d4df05).

The tracks. The inclined tracks follow the legs' curve, because each rail station is anchored to the inner corner a at every Plate XXXI node; a track kinks where its leg kinks. The Otis track follows the pile's diagonal from 54° 35′ at the bottom to 77° 30′ at the top [sourced, text pp. 144, 344]. The model's rail is a polyline that holds 54.6° to node XXIV, steepens to 77.05° in panel 10 and runs at 74.11° in panel 11. The Roux track's top angle, about 72°, follows from its printed length alone [derived]. The tracks run on below the ground into their pits.

The third audit round found tracks passing through solid decks (90 intersecting triangle pairs); the decks now have their openings from Plate XVI.

What balances what. Each maker solved the counterweight differently, and the model builds each mechanism as drawn.

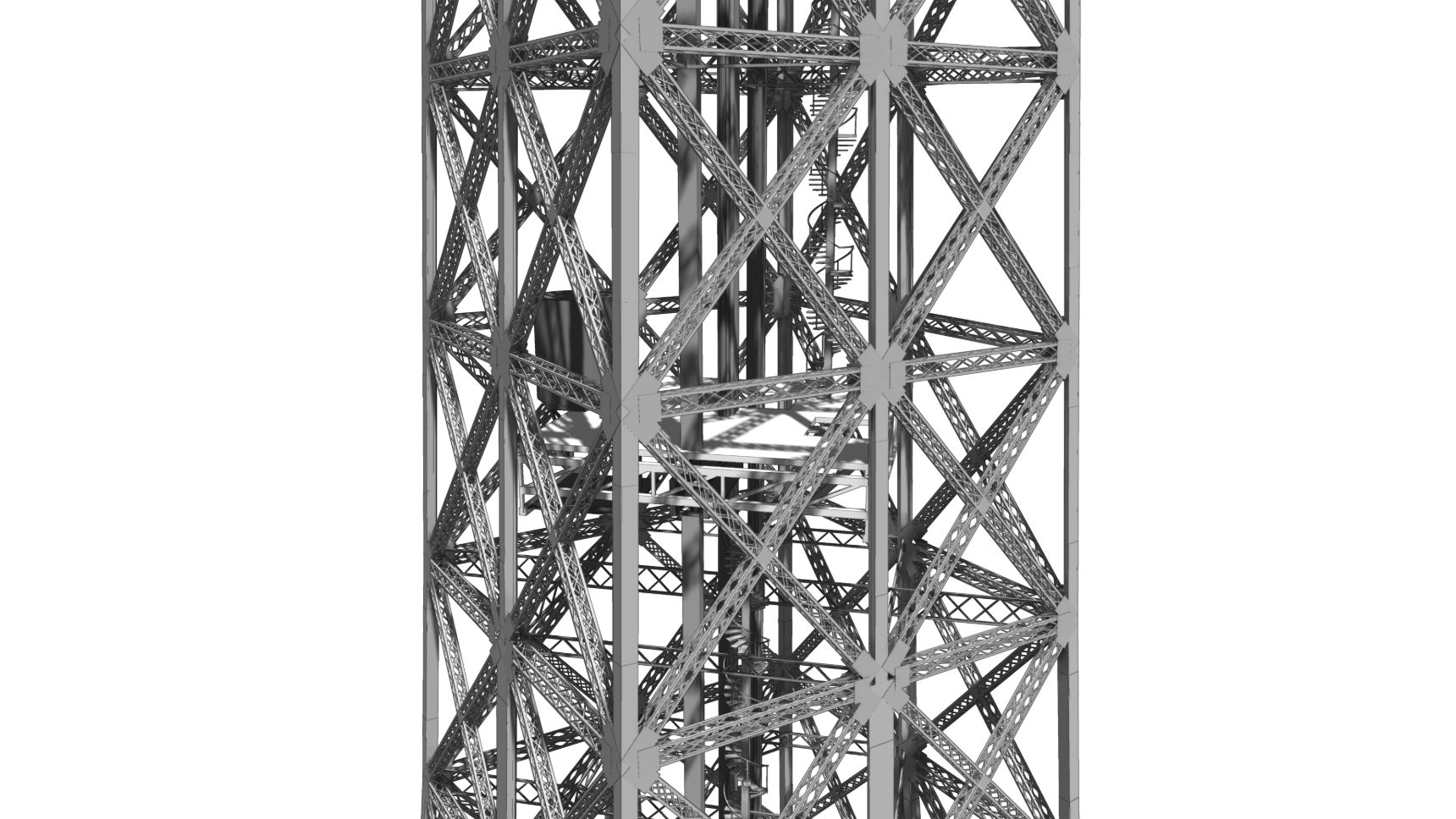

• Edoux. The lower car is the counterweight of the upper, hung on four cables over pulleys at the top [sourced], so the two cars move in opposition [derived]. Its piston, 0.32 m across and 80.96 m long, is derived; the 80.20 m stroke and an 81.06 m cylinder are printed (the cylinder in the text, p. 172).
• Otis. Water drives a piston in a cylinder 1.065 m across and 12.674 m long, reeved through a twelve-fold tackle, « palan à 12 brins », so its carriage travels a twelfth of the car's run. The counterweight truck travels a third, 129.96 / 3 = 43.32 m, on its own track [sourced, Plate XXI].
• Roux. The car is pushed up by an articulated chain of mostly one-metre pieces round a 3.864 m driving wheel. It is balanced by lead counterweight pistons of about 143 kg: eleven in the text, ten in its fig. 144 [sourced].

The machinery hangs on steel that carries it: shafts in bearings, hangers, wheels (17c1647e).

Graph and page. The graph builds the geometry, and each part the page moves is its own output: 43 car.* meshes (cars, cabin glass, cables, pulleys, wheels, pistons, carriages, trucks) and the Roux chains as four chain.* outputs of instances. The cars are placed per leg, not copied, because each is its own mesh the page moves on its own. lifts.ts also publishes each car's motion law; the page owns the clock and moves the parts every frame.

By default all six run station to station at about 1 m/s, a speed chosen for the page; the real Roux car took about a minute to the first floor. The Otis car tips as its rail bends. ?still parks them where the graph built them, each leg's car at a different height.

Departures, each recorded in SOURCES.md: the rail stands 4.35 m off its corner where 3.3 is measured off Plate XX; the Roux car arrives at the first floor tipped 11.7°, where the book has it level; the Otis car tips 8.6° against about 11.9°; the Otis pulleys are drawn flat, and its counterweight track runs about 58 m against the text's 45. Not built: the Roux cylinders and Galle chains, the Otis « garant » cables, the Edoux racks and pipes.

?build opens a different graph: the tower's modules plus the erection's temporary works and cranes (erection.ts, cranes.ts, chronology.ts; SOURCES.md §32; f15598c0). The graph carries no time. At load the page dates every triangle, then reveals the tower day by day under a date scrubber with a play button. The span runs from the foundations begun on 26 January 1887 [sourced, p. 86] to the last lift into service on 19 June 1889 [sourced, p. 118]: about 29 months, in about 40 s of play.

The pace is mainly the book's. Its milestones, all but the first two from its table of the erection's periods, are these:

A few dates are estimated or read off photographs: the scaffolds struck, the legs reaching the first floor. The cranes' days are estimated. 18 July 1887 is the book's date for a photograph of pile 4's first tronçons, not the day they were begun: they are already past mid-panel 1 in it [sourced, p. 103].

Between milestones, rules take over:

• An erection front of height against date, shared by all four legs [rule]. Its stops are read off the book's fig. 123 and photographs [sourced stops], and it is interpolated linearly between them [estimated].
• Each piece is dated by the height of its top, and an upright by its tronçon [rule].
• The girders' order is assumed.
• Site rivets appear at the book's counts for each period [sourced counts; the mapping a rule].

Temporary works are Plate XXV's (6670c21f):

• four timber pylons a leg, on bases 8.50 m across, 27.41 m tall on the figures where the text says 27.40 [sourced, Plate XXV figs. 1–3, 13–14, pp. 103–104];
• the sand boxes, 0.40 × 0.50 m, and temporary shoes [sourced, Plate XXV figs. 3–12];
• four scaffolds « de 41 m de hauteur » [sourced, pp. 107–108, Plate XXV figs. 15–18], their plan positions measured off fig. 1.

When each went up and came down is mostly assumed.

Cranes are creeper cranes of Plate XXIV's design, rated at 3,000 kg [sourced, text p. 105; the geometry Plate XXIV figs. 2–4] (c3a0ba32). They work in six runs, never all at once: four leg cranes on the lift girders, and two upper cranes on the central guide post. How far a crane steps each time is a rule of the model's [assumed]. The works are the graph's ten works.* outputs, built only under ?build, and the page moves the cranes.

Not built: the hydraulic jacks, the shear legs, the steam hoists, the working floors and the piles. Known departures: the cranes intersect panels 12–13, and the post cranes' jibs cross panel 29's uprights and bracing, the stair's flights and the summit's rooms. Build, rotate and walk are exclusive, and turning build on reopens the page on the whole site.

Cook and draw

At a whole depth the page cooks the graph once on the CPU; a streamed depth is cooked by cells (see Detail). The page converts each class output to a buffer geometry, packs each rivet batch for the vertex shader (see Rivets), and instances the fittings and the chains against its unit assets. The depth buffer is logarithmic, because the camera may orbit to within 0.2 m of a rivet head and draw back to 1.5 km for the whole tower.

The page draws the result as an ink-and-wash elevation (ink.ts, wash.ts, drawing.ts; 5017ed2c). A prepass draws every visible surface's normal and depth. A full-screen pass then inks a contour where the depth jumps and a crease where the normal turns. Under the lines lies a wash: the scene lit by the page's lights and shadow, with every material's paint replaced by a palette generated from one main colour. Nothing shines. By default the palette is mono, so the tower is one grey in steps of value on white paper.

The palette

Each class still has its own material, and what a class is to the palette is its role:

Light and shadow

A braced panel under flat light is a hatched silhouette. Lit from one side by a directional sun, it casts its web onto the members behind it and onto the ground, and the depth of the lattice becomes legible. The wash keeps that light under the lines.

The lights are the page's rig (rig.ts), set by the drawing (drawingLook in drawing.ts; f94841e9):

The drawing has no sky, no fog and no vignette, and it draws no ground. A plane catches the tower's shadow on the ground, and the page lays it on the paper in a light grey.

The key's orthographic shadow camera is fitted by fitShadow to the bounds of what is drawn, the buried foundations left out; the figure below shows the fit. The shadow map is 4096². It is not redrawn as the camera orbits, so orbiting costs no shadow pass. It is redrawn when the visible classes change, when the section moves, at each day of the erection, when a streamed cell arrives, and on the walk's near-shadow refits.

That scheme holds because nothing that moves every frame casts a shadow: not the lift cars and their machinery, and not the flag. The rivets cast none either, for cost (see Rivets). The erection's cranes move only from day to day, so they do cast shadows.

The drawing's own key, 57° up, throws 0.649 m of shadow per metre, about 202.8 m from the rod's tip [computed from the angle]. Under the lit look's light, a texel of the 4096² map is about 9 to 10 cm on its longer side, as walkView.ts records it.

Normals

The page repairs no geometry. meshPrimitive writes no normals by default, and mergePrimitives fills a column missing on one input with its default, (0, 0, 0), which a lit material shades black. Several modules fell into this. They were fixed at source: meshPrimitive gained an opt-in normals: true, and the page's zero-normal repair was deleted (3aa4f14d). The mergePrimitives half of the trap is still open in the library's backlog. Round parts, the reservoir and the crescents, shade round through smoothNormals (9cb09d6e).

Motion and controls

The page also runs things in time, without recooking the graph. The lift cars and their machinery move every frame by the motion laws lifts.ts publishes (see Lifts). The flag is a simulated cloth: wool bunting on its cord in a gusting wind drawn from the seed 1889, solved in small XPBD steps (flag.ts, ceeb65f6). It is defined as a run from rest in fixed 1/60 s steps, so the frame at a time t is the same bytes however the page reached it. ?wave swaps it for the earlier wave, and ?still parks the cars and holds the wind.

The page's controls:

• Section. The section box cuts the whole tower on a vertical plane parallel to Plate XX's diagonal section, and opens the ground under the cut (see Ground). A slider moves it in metre steps (?section=<m>; fcd79a0e).
• Walk. ?walk climbs the 1,710 steps in first person on the stairs' own path (4dc794b2).
• Orbit. WASD and Q/E move the orbiting camera.
• Highlights. The highlight switches (?hl=) draw the stairs, the lift cars or the rivets over the rest of the tower, which is laid on the paper at the Ghost slider's opacity.
• Copy view. "Copy view" copies a URL that reopens the exact frame, with its state as JSON.

The page's Detail section sets lacing and rivets each to off, streamed or full, and applies the choice with a reload (depth.ts; b7ce7138). Full is a depth's graph cooked once, as in the table in Architecture. In the URL, Full is whole. It is not ?rivets=full, which is whole rivets plus the built-up uprights' rows (see Commands).

Streamed is the one place the demo uses the library's runtime: grid levels and partitioned cooking (bands.ts, 866fd282). The page still cooks the whole tower, at the depth that is set full. Above it stands a World of up to two levels of cube cells:

Those defaults come from what a pixel holds on the page's camera at 1,080 rows [derived]. When both levels stream, a rivet cell cooks only once the laced cell holding it has, so heads never stand on a solid bar. A level's cellFilter skips the cubes that are only sky.

Each level cooks one regional graph (region.ts): the whole tower's graph at that depth, node for node and seed for seed, plus box filters, the gates, that each cell moves onto its own bounds, each widened by its halo. The regional graph has 2,251 nodes laced and 3,926 with rivets.

A laced cell puts out the classes the laced depth changes. Each comes out as the primitives whose bounding box meets the cell, so a member crossing a seam comes out of both cells whole, and the page clips it at the seam. The gate is one filterPrimitivesByBounds (c51c5777). A rivet cell puts out every head whose seat is in it, so each head is in exactly one cell. A cell is therefore exactly the whole cook inside it, and tests/eiffelBands.test.ts holds every cell of both levels to that, byte for byte.

The cooking runs in one Web Worker (bandsWorker.ts), at most four cell cooks an update in a 50 ms budget. A cook in flight is dropped when the camera moves more than the finest streamed cell: a rivet cell, or a laced one when only the lacing streams.

Measured 2026-10-02, headless in Node rather than in the page's worker, on the same Intel i9-13900KF as the table in Architecture; medians of seven (109f23f9). Cold is a level's first cell, which also does the tower-wide work above the gates. That work is cached, so later cells cost their own members (warm). The whole laced cook takes 2.87 s; a streamed view pays for the cells near the camera.

The demo was built in one Claude Code session, from the first request at 18:09 on 2026-09-18 to the last commit at 14:17 the next day, in 18 commits. That was the first build; about 89 later commits have touched demos/eiffel since. The main thread launched 45 agents, and those launched their own readers and verifiers: 107 agent transcripts in all.

The choice at the start was between tracing members and stating rules. Rules were chosen, with the plates as the first authority for anything a rule takes as input, and an [estimated] tag where no source gives a number.

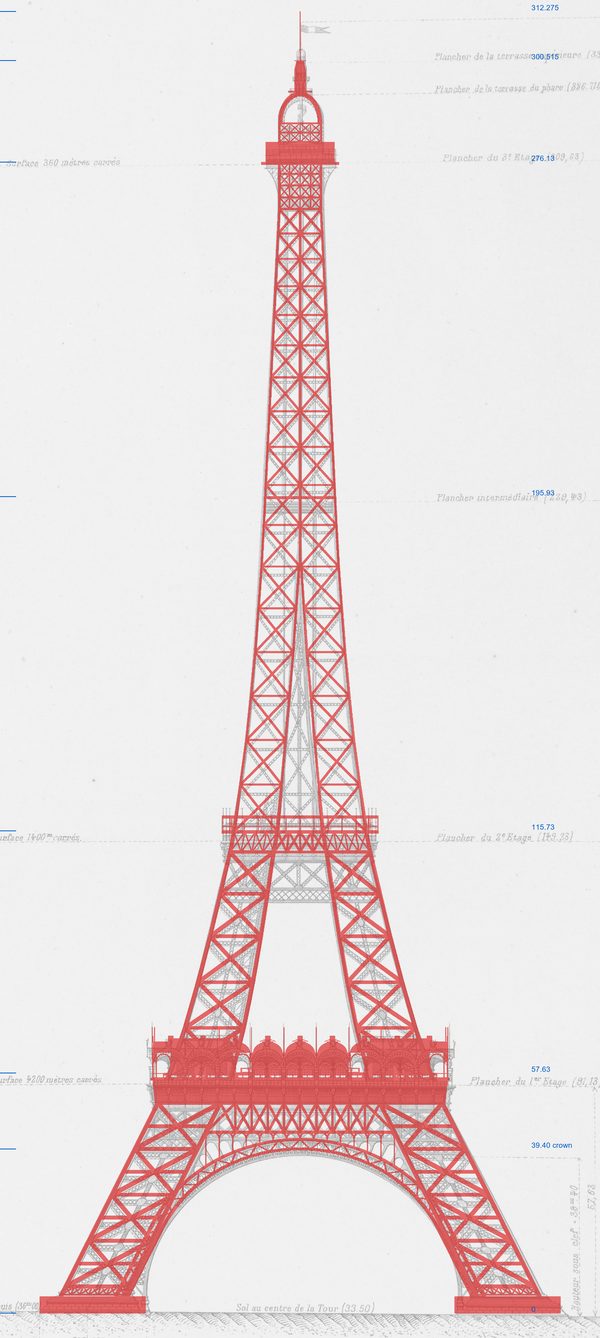

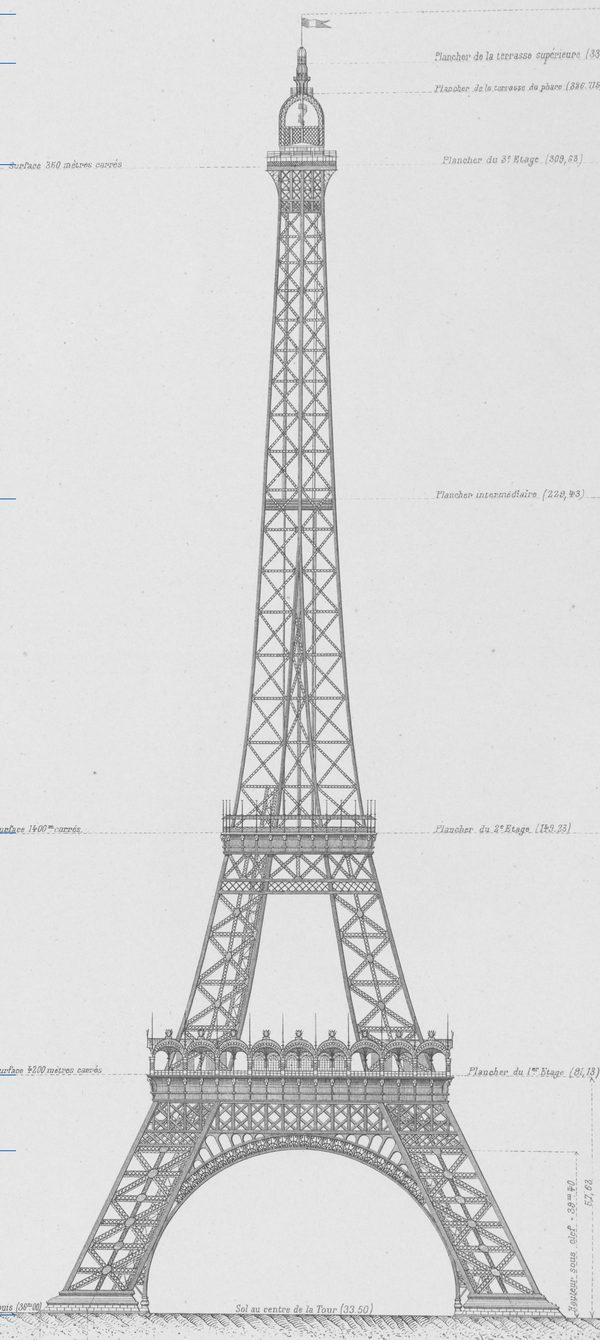

Every pixel reading is calibrated on a dimension printed on the same figure. The silhouette audit deskewed the Plate I scan by 0.87° and rendered the model orthographically face-on at 4096² (9.30909 px/m). It took each row's full ink extent as the median over ±0.4 m. A row counted as off only if it was off by more than 3% under two calibrations: one isotropic, one mapped piecewise through the printed levels. Member sections were measured on the cooked meshes, sliced perpendicular to each member.

The auditors' own composites: model in red, drawn orthographically at the plate's scale, over Plate I in grey. Left, the plate alone; centre, the model the first round audited; right, the model the third round audited. Plate I: G. Eiffel, La Tour de trois cents mètres, Planches (1900). Source gallica.bnf.fr / BnF.

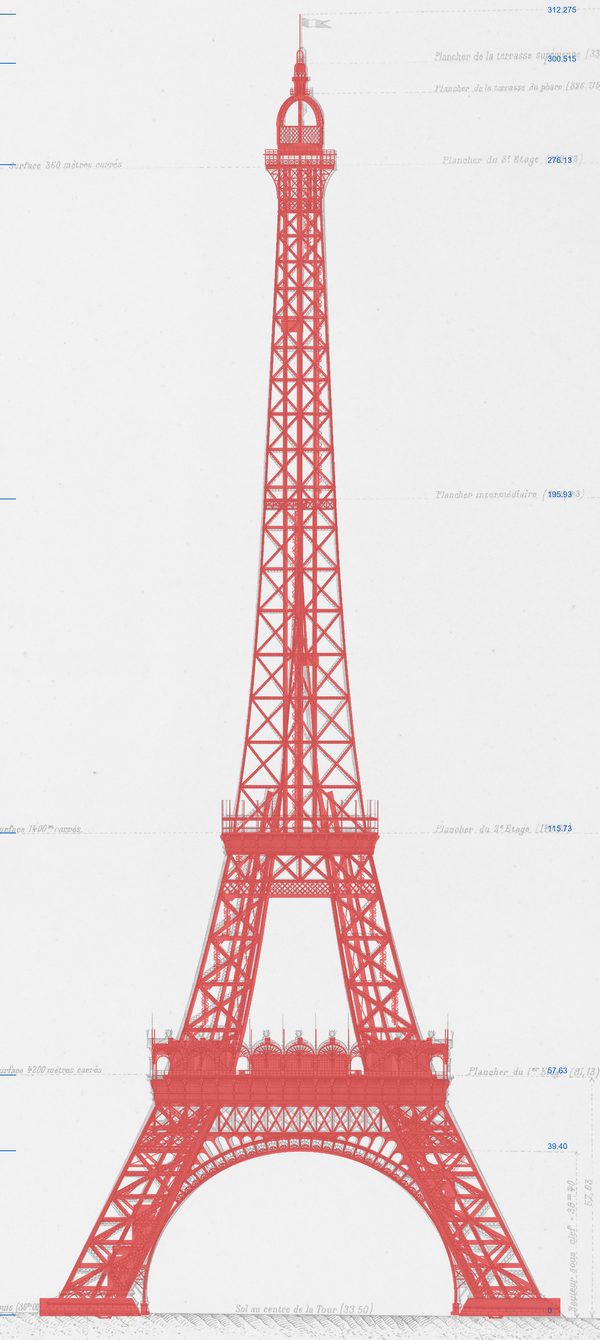

Round three found the silhouette within 1–3% of Plate I from the ground to the third floor. It still found about 25 element rows off, among them the summit's plan, lift tracks through solid decks, and the pedestal and arch-foot heights. Its commit settled each on the plates (c39ee48). The pedestal, for one, now stands 5.55 m, between Plate I's 5.45–5.53 m and Plate VII's 5.65–5.74 m; the French Wikipedia's 4 m is drawn on no plate. No fourth round audited that commit.

Round three's open points are listed under "Disagreements and open points" in SOURCES.md §21–§24. The sections written since, through §34, carry their own, among them §27.4 on the rivet count and §31.2 on the plinth's height.

The plate audits compare the model with the drawings. A fourth kind of check asks a question no drawing answers directly: does each piece stand on something?

tests/eiffelFloating.test.ts cooks the tower at the plain depth, with no lacing, gussets or rivets (47dd3c91). It reads none of the tower's instanced outputs, and runs a detector (tests/support/eiffelFloating.ts) over the faces. The detector reports two kinds of piece:

• Floating. The cluster of faces the piece touches, within 8 mm, never reaches the ground.
• Loose. The piece is a linear solid with an end that rests on nothing. A linear solid is at least 0.3 m long and four times as long as its section. A lying or raking piece needs both ends held; a standing one (plumb within 20°) needs only its foot.

An end buried inside a closed member counts as held, decided by a vote of three rays counting crossings. Before it reads the tower, the test runs the detector on a synthetic scene and requires it to report both kinds, so a detector that has stopped seeing cannot pass.

The first sweep found 1,445 floating clusters, about 1,100 of them in the stairs, and 1,992 loose ends. The fixes went into the modules, not into the test:

• treads into their newels, and posts to their rails (023d40f8);
• the lift machinery's shafts, bearings, hangers and wheels; the same commit also closed the legs' entretoises and seated pieces of the shaft and the summit (17c1647e);
• the trellis laths, lantern roofs and knee struts and the arches' ironwork, reaching what carries them (2cf89f71);
• posts at the entrance flights' rails [estimated] (47dd3c91).

The test first measured the mesh with its 1 mm offset on, and welded corners within 4 mm. A later commit, ed3070ad, switched the offset off and tightened the weld to 0.5 mm, and the commits since measure that way.

What remains, 8 floating clusters and 386 loose ends, is in an allow list of 35 entries. Each entry has its box, its exact count and its reason, so an entry that no longer matches fails as surely as a new floating piece. One entry is an open decision rather than a known departure: the entretoise at XXI in the Otis legs.

Siblings of the same kind: eiffelRivetClash (no lacing head inside a joint or crossing plate), eiffelStairsClearance and eiffelStairsHeadroom, eiffelArchEnds (the first floor lands on the web).

• Structure. The large structure is the plates' to the precision the plates print. Below the panel scale the model is a set of rules whose parameters are plate readings, often [estimated] or [measured]. Most members are where their rule puts them, not where the drawing shows that particular member.
• Rivet pitches. They are measurements of a few details, each applied by rule wherever its kind of joint recurs: the seams' 125 mm from one gusset on Plate IX, the splice fields from two of its figures.
• Rivet counts. The model draws 1,205,292 rivet heads. The only count the book prints is of site rivets: 1,050,846, of which the model draws 334,659, about a third. The 2.5 million often quoted for the whole tower is not printed there.
• Letterforms. The names' letterforms follow the 1986–87 restoration, because no 1889 photograph is sharp enough to read them.
• Later states. The 1900 album occasionally draws a post-1889 state. Where the text or an 1889 figure does not settle it, SOURCES.md says so.

Some departures are deliberate. Each is named where it occurs, and recorded beside the code that makes it or in SOURCES.md:

• The ground is one flat plane, where the Champ de Mars stood higher round the piles, so the plinths stand 1.58 m low.
• The supports and massifs sit 1.10 m down their uprights' axes, because the model's uprights run to Plate XXXI's support node.
• The lifts run at a speed chosen for the page.
• The erection's cranes pass through panels 12–13, and the post cranes' jibs through the iron and rooms above them.

The build draws two seeded values and no others: the 1 mm offset (jitterPoints) and each rivet's headDrive (randomField). Both are hashed from two inputs: the graph's seed, 1889, and each point's identity, which is its position and its seed column. Outside the graph, the page's flag draws its wind from the same number.

Nothing reads an unseeded source, so the same source cooks to the same bytes on every run. tests/eiffel.golden.json holds the hashes, and the demo's commits use them as their control when a refactor claims to change nothing.
